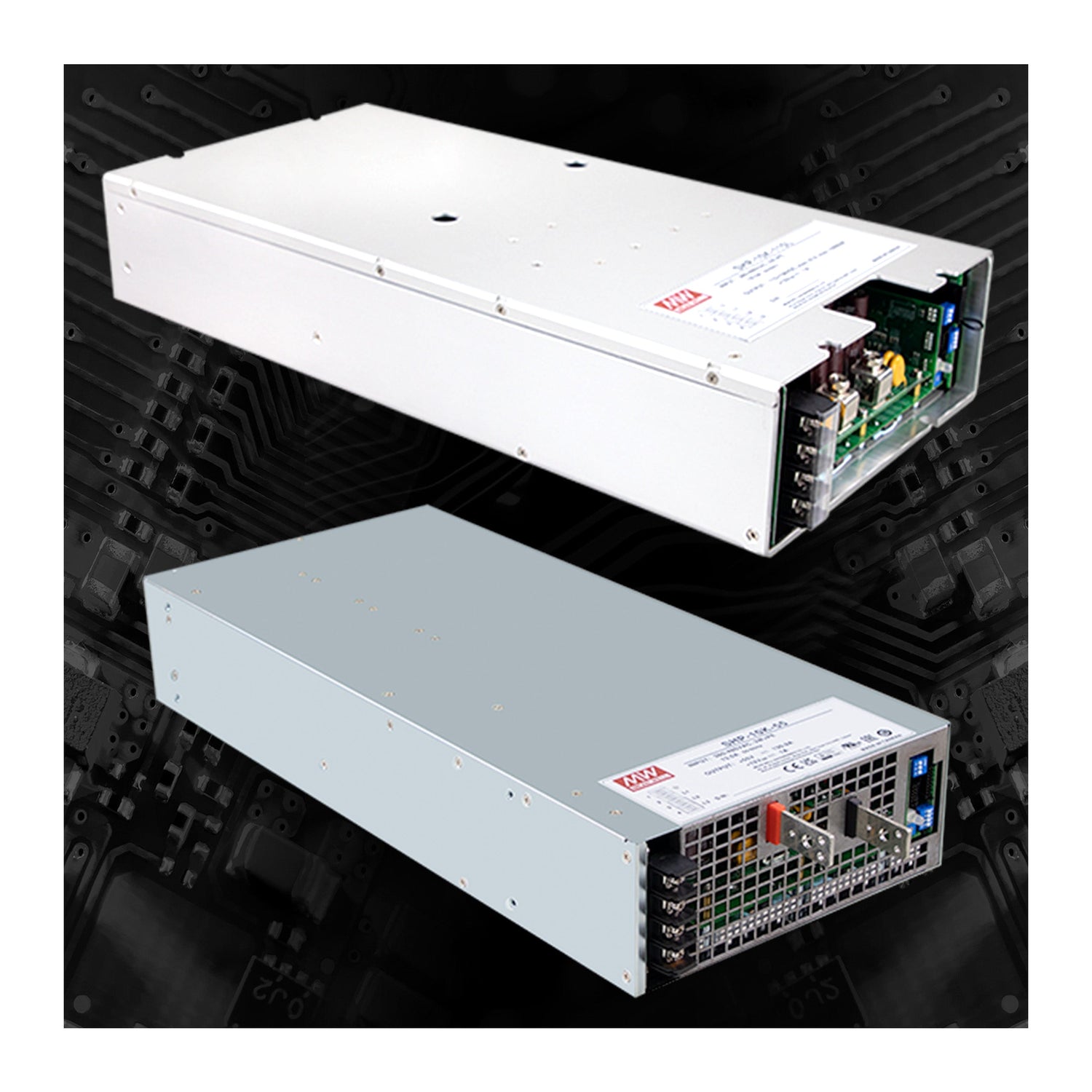

SHP-10K-HV Series Power Supply – 10kW 3-Phase by MEAN WELL

The SHP-10K-HV Series represents MEAN WELL’s latest innovation in high-power industrial power supplies. With a three-phase 340–530Vac input, the SHP-10K-HV Series delivers up to 10kW per unit and allows parallel connection of up to four units for total system output up to 40kW. Offered in four output models (55V, 115V, 230V, 380V), it is adaptable to a wide range of system voltages used in industrial automation, centralized bus power, energy storage systems, and test applications.

Fully digitally controlled, the SHP-10K-HV Series supports programmable output voltage and current via CANBus, with PMBus and MODBus available as options. Its robust monitoring system includes signals for DC OK, over-temperature, fan failure, and AC failure, making it highly integrable and intelligent. Operating from -30°C to +70°C with full-load capability up to +50°C, it offers two thermal management options: forced-air cooling with built-in DC fans or water cooling for sensitive environments. Certified to EN/UL62368-1 standards, and housed in a <2U height chassis, the SHP-10K-HV Series is optimized for 19" rack installations, offering powerful, space-efficient performance backed by a 5-year MEAN WELL warranty.
