MEAN WELL IOB-15 Series Power Modules

The MEAN WELL IOB-15 Series delivers a reliable 15W on-board AC/DC power solution for industrial, automation, and smart device applications requiring high efficiency and compact design. Operating across a wide universal AC input range of 85–305 Vac (100–430 Vdc), the IOB-15 provides output voltages from 3.3V to 24V DC, achieving efficiencies up to 85% with ultra-low standby power consumption below 0.25W.

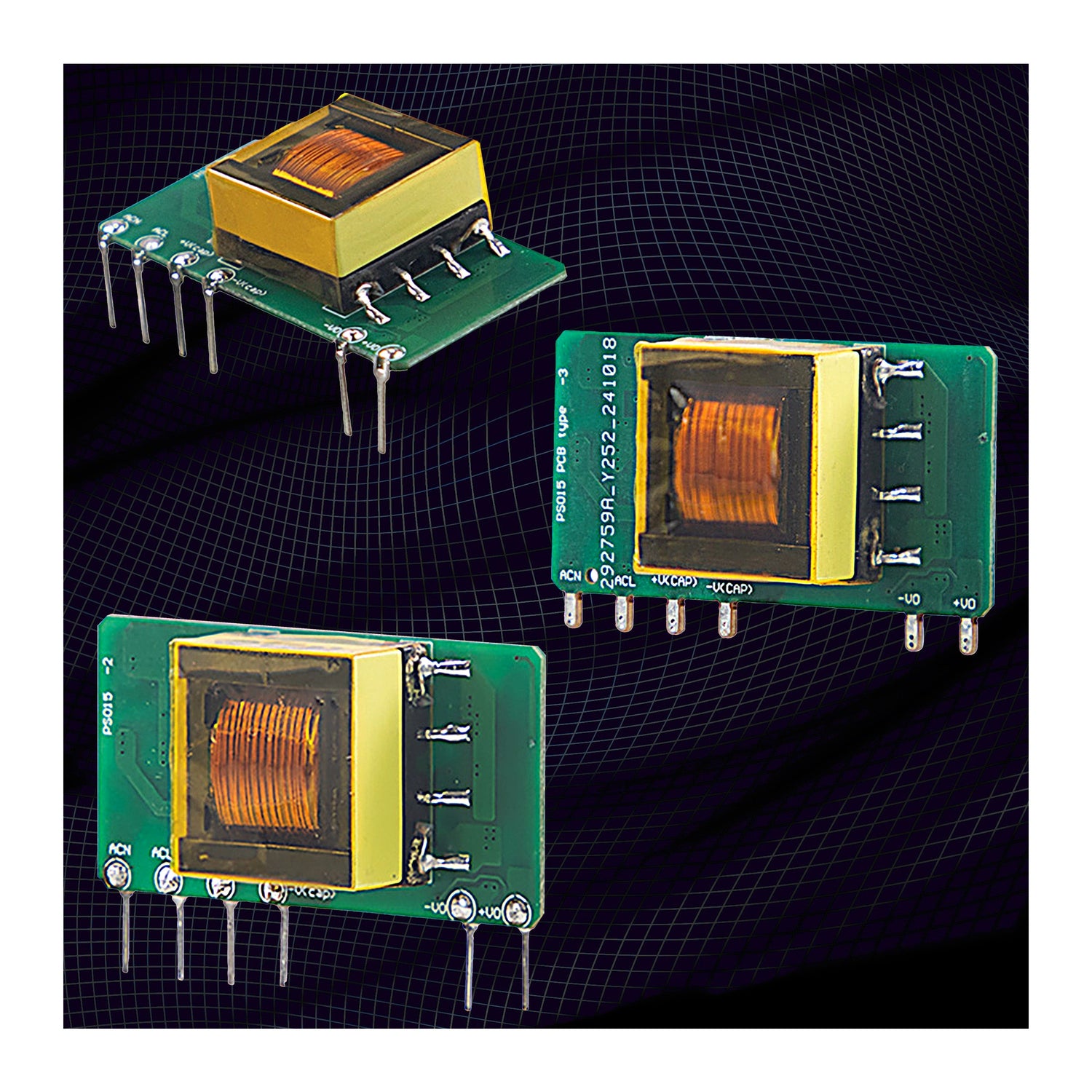

This series is available in three configurations to suit different installation requirements:

Gold Finger (A) for direct PCB edge connection, offering quick assembly and space-saving integration.

Horizontal (B) for low-profile applications where vertical space is limited.

Vertical (C) for compact boards needing a minimal footprint and optimized airflow.

Built for durability and versatility, the IOB-15 Series operates reliably from -40°C to +80°C using free-air convection cooling. It includes full protection features—short circuit, overload, over-voltage, and over-temperature—to ensure consistent and safe performance. The module is certified to IEC62368-1 safety standards and meets EMC Class B (with external components), making it ideal for use in industrial control systems, power metering, communication equipment, and smart home devices.

With its Class II safety design, universal compatibility, and compact 44.5 × 24 × 15 mm footprint, the IOB-15 Series offers a dependable, energy-efficient power solution backed by MEAN WELL’s 3-year warranty.
