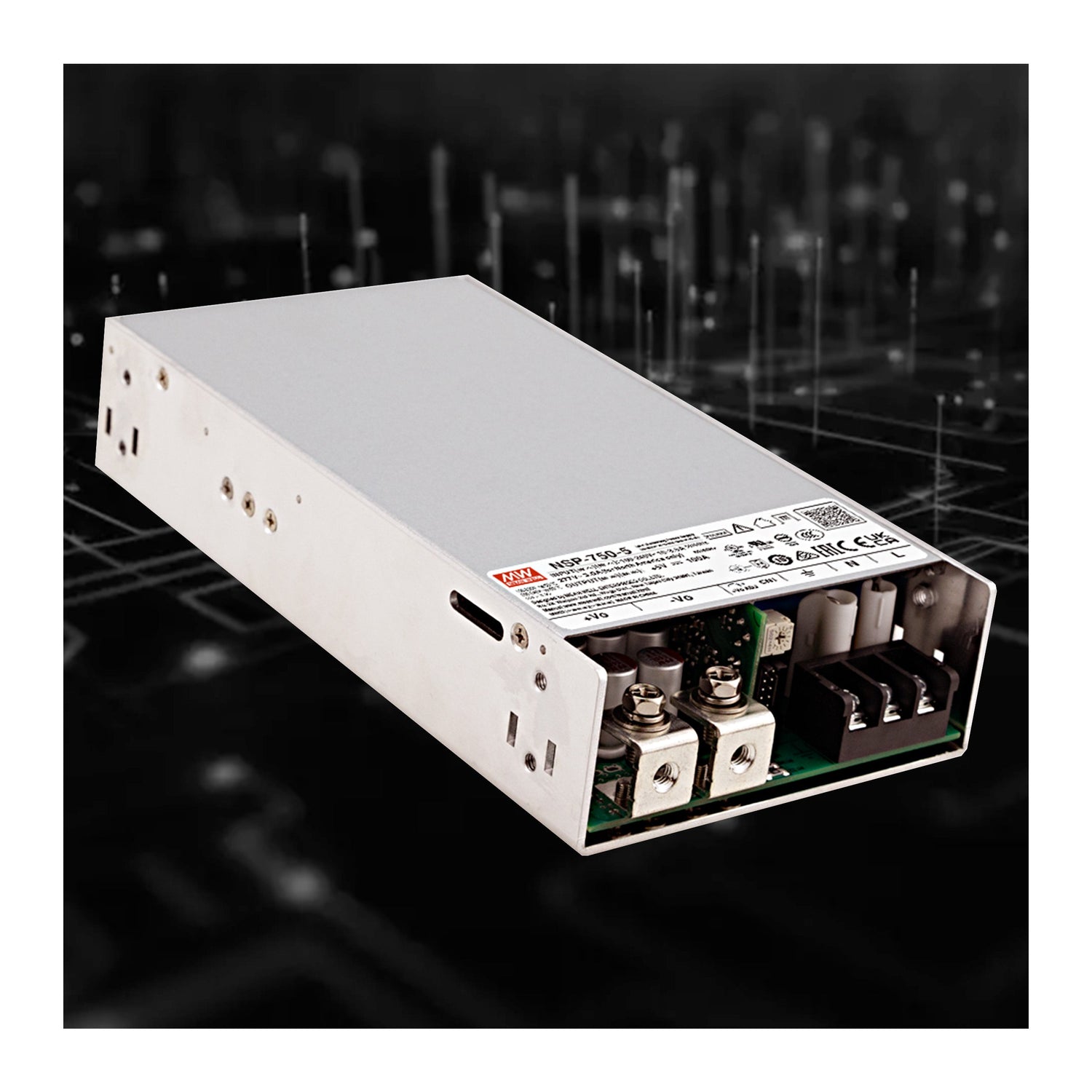

NSP-750 Industrial & Medical 750W Power Supplies

The NSP-750 Series is designed to provide robust, versatile power for demanding applications in automation, instrumentation, networking, telecom, PoE systems, and BF-rated medical equipment. As shown on page 1, the series features a universal 85–305VAC input with PFC and a wide selection of output voltages (5V to 60V). The units achieve up to 95% efficiency, while maintaining low standby power consumption (<0.75–1W), supporting energy-saving and carbon-reduction initiatives.

Built for reliability, the NSP-750 operates from –40°C to +85°C, with derating above +60°C, and includes a built-in DC fan ensuring <45 dB low-noise cooling (page 1). The series also provides 200% peak power capability (12–60V models) for up to 5 seconds—ideal for high inrush or transient load conditions, illustrated in the peak-power graph on page 5. Additional system-integration features include remote ON/OFF control, remote sense compensation (page 6), dual auxiliary outputs (5V/0.2A and 12V/0.8A), and a DC OK signal for system status monitoring.

Comprehensive protections—short circuit, overload, over-voltage, over-temperature—and global certifications (IEC/UL 62368-1, IEC 60601-1, IEC 60335-1, IEC 61558-1/-2-16, IEC 61010-1/-2-201, IEC 62477-1) ensure safe, long-term operation. With extremely low leakage current (<350 μA) and 2× MOPP insulation, the NSP-750 is suitable for medical BF applications. Backed by a 5-year warranty, it delivers a powerful, cost-effective solution for multi-industry power system requirements.
