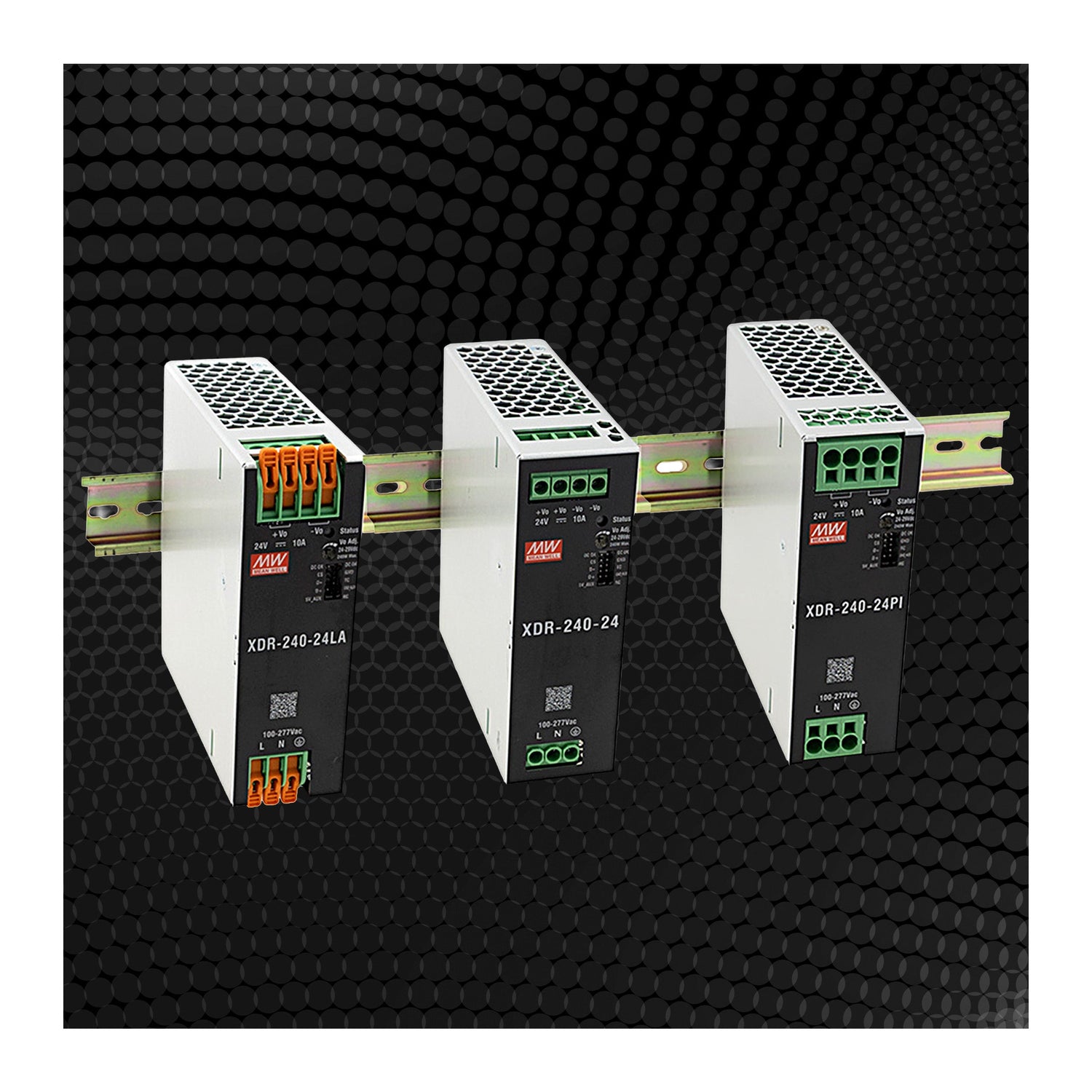

MEAN WELL XDR-240 High-End DIN Rail Power

Engineered for advanced industrial environments, the XDR-240 Series supports an ultra-wide 85 to 305 VAC input range with built-in power factor correction, making it suitable for 277 VAC systems and worldwide installations. As shown on page 1 of the datasheet, its slim 40 mm enclosure allows high-density DIN rail mounting while maintaining excellent thermal performance through a fanless, free-air convection design. Typical efficiency reaches up to 95.5 percent with no-load power consumption below 1 W, supporting energy savings and reduced system heat.

The XDR-240 Series delivers 240 W of continuous output power with available output voltages of 12, 24, 36, and 48 VDC. It supports up to 200 percent peak power and 600 percent pulse current capability to handle motor starts and transient loads. Advanced system features include built-in MODBus communication, remote ON and OFF control, DC OK relay contact, active current sharing for parallel operation up to 960 W, and an integrated ORing FET for redundancy protection. Comprehensive protection functions cover overload, over-voltage, short circuit, and over-temperature conditions. Certified to IEC, UL, and EN safety standards across industrial, ITE, marine, and hazardous location environments, the XDR-240 Series offers long-term reliability backed by a five-year warranty.
