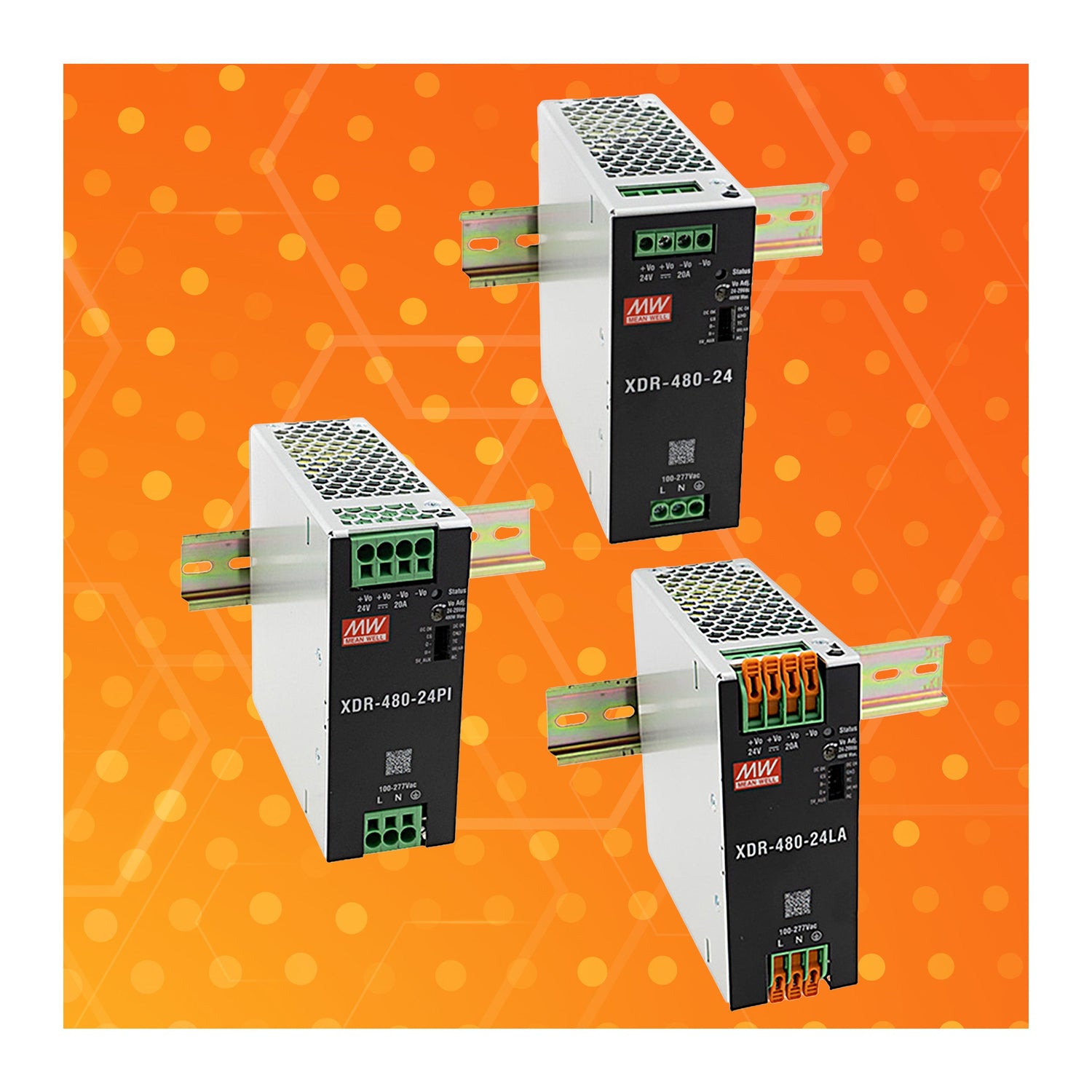

MEAN WELL XDR-480 Ultra Slim DIN Rail Power

Designed for advanced industrial environments, the XDR-480 Series supports an ultra-wide 85 to 305 VAC input range with built-in active power factor correction and compatibility with 277 VAC systems. As shown on page 1 of the datasheet, its slim 48 mm enclosure optimizes panel space while maintaining excellent thermal performance through a fanless, free-air convection design. Typical efficiency reaches up to 96 percent with no-load power consumption below 1 W, supporting energy savings and reduced heat generation in control cabinets.

The XDR-480 Series delivers 480 W of continuous output power with standard output voltages of 12, 24, 36, and 48 VDC. It supports up to 200 percent peak power and 600 percent pulse current capability, allowing it to handle motor starts, capacitive loads, and transient conditions with ease. Advanced features include built-in MODBus communication for monitoring and control, remote ON and OFF functionality, DC OK relay contact, constant current limiting, and an integrated ORing FET for redundancy protection. The series also supports parallel operation of up to four units for total output power up to 1920 W.

Certified to IEC, UL, and EN safety standards across industrial, ITE, marine, and hazardous location environments, and backed by a five-year warranty, the XDR-480 Series is a compact, high-performance, and highly reliable DIN rail power solution for factory automation, semiconductor equipment, industrial control systems, and electromechanical applications.
