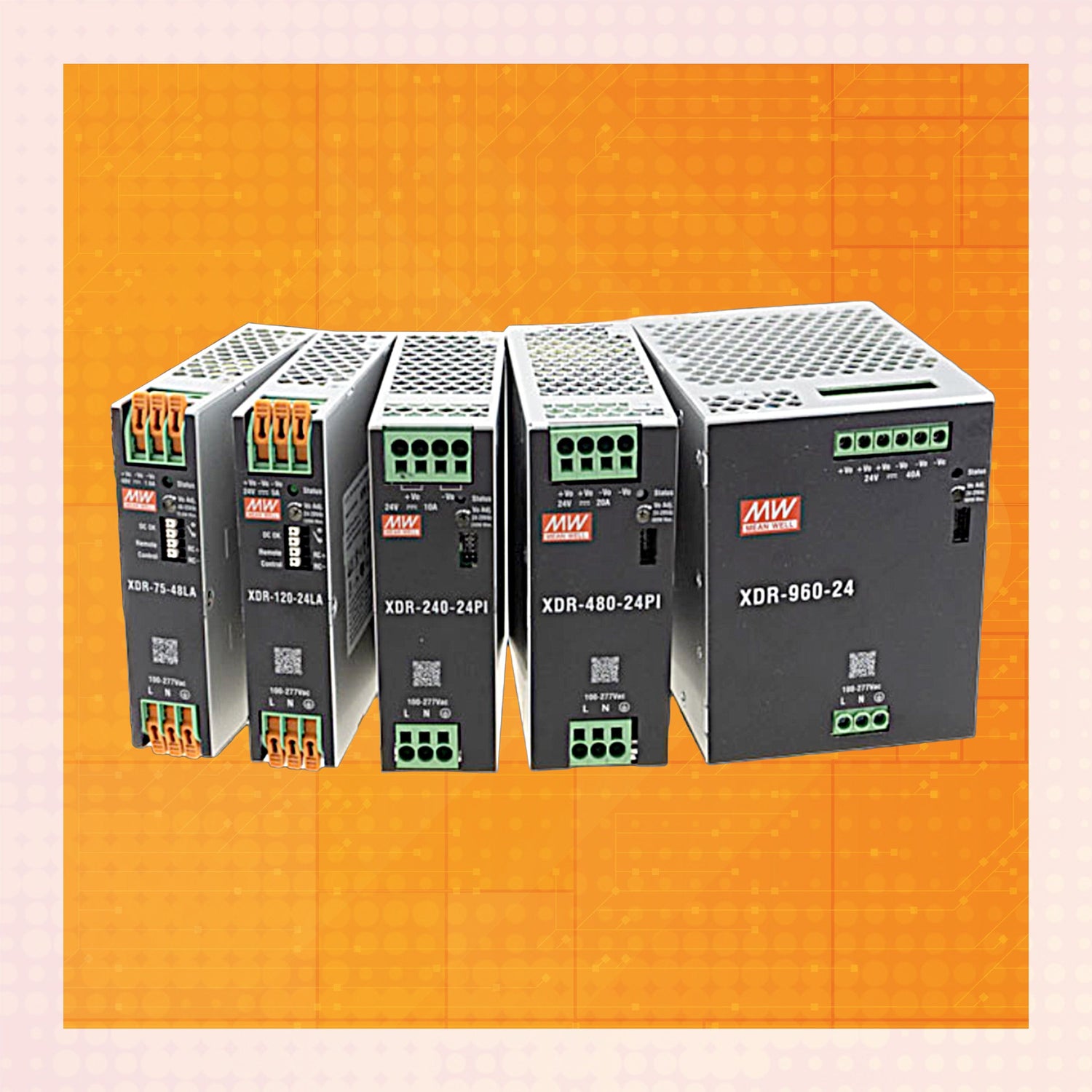

MEAN WELL XDR Series Ultra Slim DIN Rail Power Supplies

MEAN WELL’s XDR Series provides high-efficiency AC/DC power conversion for industrial environments where space, reliability, and performance are critical. With models available across multiple power levels and output voltages, the series supports applications such as industrial control systems, semiconductor manufacturing equipment, factory automation, and electro-mechanical systems. The compact DIN rail design allows quick installation on standard TS-35 rails while maximizing panel space with its ultra-slim 30 mm profile.

Designed for global deployment, the XDR Series accepts a wide 85–305Vac input range with active power factor correction and optional 277Vac operation. These power supplies achieve efficiencies up to 94% and maintain extremely low no-load power consumption of approximately 0.9–1W, helping improve system energy efficiency. The units also offer high peak power capability of up to 200% for several seconds and pulse current capability up to 600%, allowing them to support demanding loads such as motors, relays, and capacitive devices.

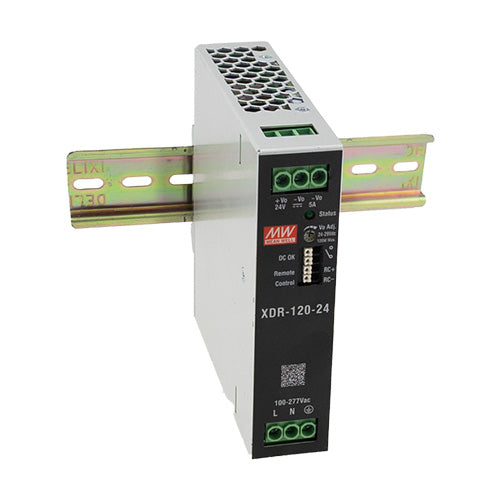

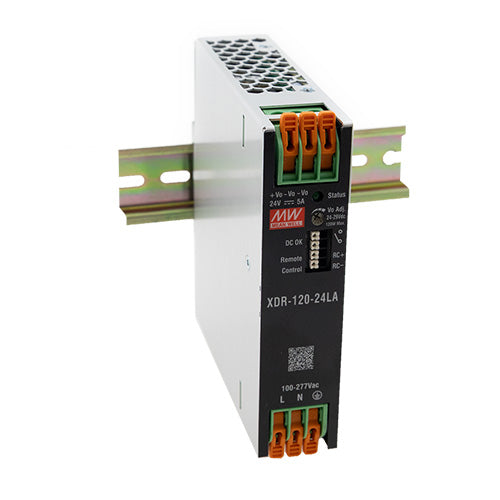

For installation flexibility, the XDR Series is available with three terminal connection options to accommodate different wiring preferences and installation requirements: Screw Terminal, Lever Actuated, and Push-In terminal blocks. These options enable faster installation, secure connections, and improved accessibility in control cabinet environments.

Additional features include remote ON/OFF control, DC OK relay contact for system monitoring, ultra-low inrush current, built-in ORing FET, and conformal coating for improved protection against moisture and dust. With a fanless convection-cooled design, a wide operating temperature range from –40°C to +85°C, and comprehensive protections for overload, over-voltage, short circuit, and over-temperature, the XDR Series delivers dependable performance in harsh industrial environments. Certified to multiple global safety standards and backed by a 5-year warranty, the MEAN WELL XDR Series is an excellent solution for modern industrial power systems.
