THI 3-1213

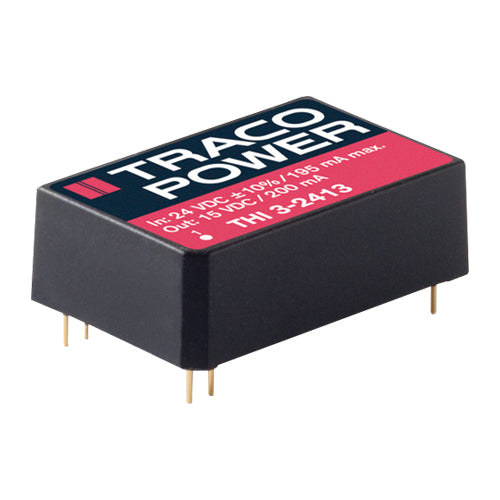

15Vdc 0.2A, Medical DC-DC Converter DIP-24 Package 2XMOOPManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$36.97
10
$30.72
25
$30.31
100
$24.22
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
10.8~13.2Vdc
Output Voltage:
15Vdc
Output Max Current:
0.2 Amps
Max Power:
3 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power THI 3-1213 high isolation DIP-24 medical DC/DC converter
Operating temperature: -40~+75°C
Medical safety approvals: AAMI/ANSI ES 60601-1:2005(R) & IEC/EN 60601-1 3rd edition
Industrial safety approvals: UL/IEC/EN 60950-1
2xMOOP
Supplementary and reinforced insulation
Fully regulated output voltage
I/O isolation 4000Vacrms rated for 300 Vrms working voltage
Input filter meets EN 55022, class A and FCC, level A
Low leakage current
Low coupling capacitance
Short circuit protection
TRACO Power 3 year warranty
