IMB0112S05

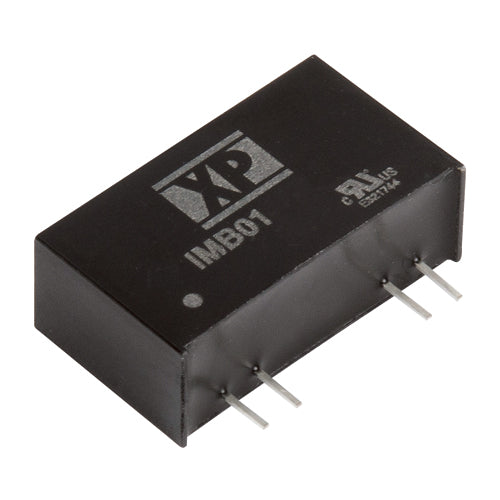

5Vdc 0.2A, Medical DC/DC Converter, SIP-7, UnregulatedManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$18.13
5
$17.59
10
$17.04
25
$16.32
100
$15.23
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
10.8~13.2Vdc
Output Voltage:
5Vdc
Output Max Current:
0.2 Amps
Max Power:
1 Watts
Known Country of Origin:
Taiwan
Features
XP Power IMB0112S05 medical DC/DC converter
Operating temperature range: -40~+105°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Low leakage current ≤2µA
I/O isolation: 4000Vac
Unregulated output
Operation up to 5000m altitude
Protections: short circuit
XP Power 3 year warranty
