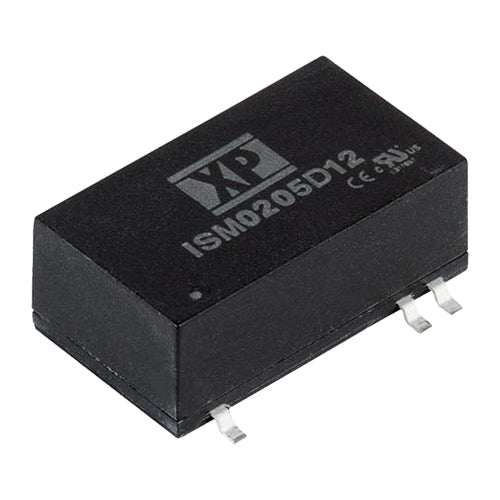

ISM0205D12
Dual O/P, Medical DC/DC Converter, SMD Package, Unregulated, Dual OutputManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$33.28
5
$32.28
10
$31.28
25
$29.95
100
$27.95
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
4.5~9Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.083 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
-0.083 Amps
Max Power:
2 Watts
Known Country of Origin:
Taiwan
Features
XP Power ISM0205D12 SMD type medical DC/DC converter
Operating temperature range: -25~+105°C
Medical safety certification: ANSI/AAMI ES/IEC/EN 60601-1
Industrial safety certification: UL 60950-1, UL 62368-1
Leakage current 2µA
I/O isolation: 4000Vac
Unregulated output
Protections: short circuit
XP Power 3 year warranty
ISM0205D12
Dual O/P, Medical DC/DC Converter, SMD Package, Unregulated, Dual OutputManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
4.5~9Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.083 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
-0.083 Amps
Max Power:
2 Watts
Known Country of Origin:
Taiwan
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$33.28
5
$32.28
10
$31.28
25
$29.95
100
$27.95
REQUEST a QUOTE for higher qty discounts
