TMPM 10103

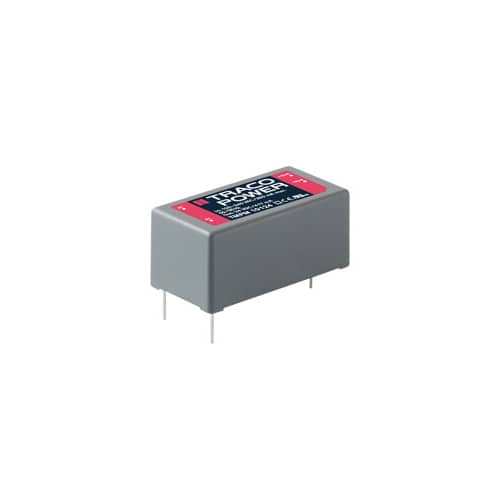

3.3Vdc 2.5A, 3.3V PCB Mounting Power Supply Encapsulated Small FootprintManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
3.3Vdc
Output Max Current:
2.5 Amps
Max Power:
8 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TMPM 10103 small footprint PCB mount AC/DC power supply
Universal AC input range: 85~264Vac
Operating temperature: -25~+70°C
Safety approval: IEC/EN 60950-1 & UL 60950-1
Protection class II
Fully encapsulated low profile plastic casing
Protections: short circuit / over voltage / over load / over temperature
TRACO Power 3 year warranty
