GRN-45-4002
Quad Output Power Supply ,Manufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
5 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
1 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
1 Amps
Max Power:
45 Watts
Known Country of Origin:
USA
Features

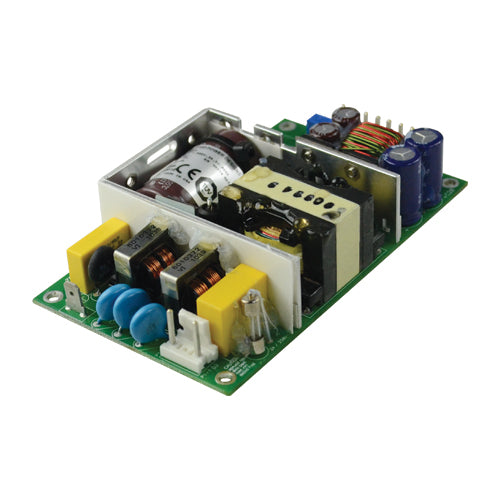

IPD GRN-45-4002 multiple output 2.5x4.25x1 inches open frame power supply
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
2xMOPP - Means of Patient Protection (primary to secondary)
<1W no load input power
Small compact size, high power density
Made in USA - IPD power supplies are manufactured in the US
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 3 year warranty
