Power Worth Searching For
GRN-60-1004
15V Power Supply , 15V, 4A, Open Frame, 2x3Manufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
4 Amps
Max Power:
60 Watts
Known Country of Origin:
USA
Features

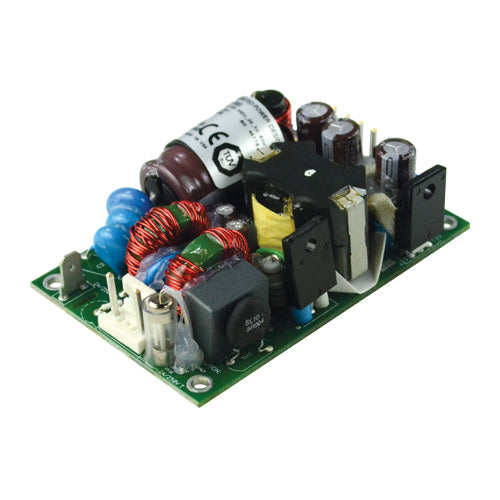

IPD GRN-60-1004 single output 2x3x1 inches open frame power supply
AC input range: 85~264Vac
EN 60950-1 ITE certification and EN 60601-1 medical certification
2xMOPP - Means of Patient Protection (primary to secondary)
<0.3W no load input power
Operating temperature: 0~+70°C
Small compact size, high power density
Made in USA - IPD power supplies are manufactured in the US
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 3 year warranty
