Power Worth Searching For
REL-185-2003

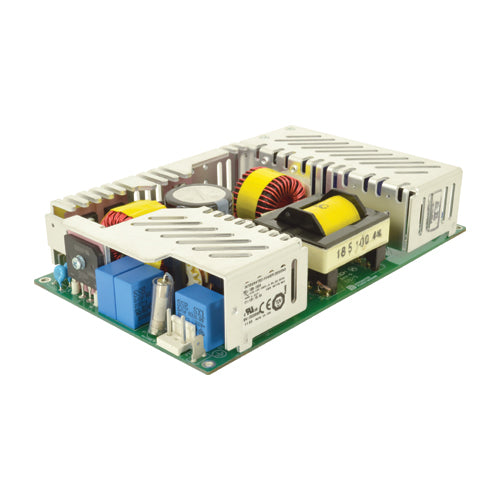

Dual Output Power Supply , Open Frame, 4.25"x7" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$205.68
3
$199.54
10
$196.60
25
$185.96
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
20 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
4 Amps
Max Power:
185 Watts
Known Country of Origin:
USA
Features
IPD REL-185-2003 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
Industrial safety approvals: UL 60950-1 and IEC/EN 62368-1
Medical safety approvals: AAMI/ANSI ES 60601-1 & IEC 60601-1-2 4th Edition EMC compliant
2 x MOPP - Means of Patient Protection (primary to secondary)
PFC
Small compact size, open frame dimensions: 4.25x7x1.5
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
REL-185-2003
Dual Output Power Supply , Open Frame, 4.25"x7" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
20 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
4 Amps
Max Power:
185 Watts
Known Country of Origin:
USA
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$205.68
3
$199.54
10
$196.60
25
$185.96
REQUEST a QUOTE for higher qty discounts
