SRP-25-1006
48 Volt Power Supply, Open Frame 2.25"x4.0", ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
0.52 Amps
Max Power:
24 Watts
Known Country of Origin:
USA
Features

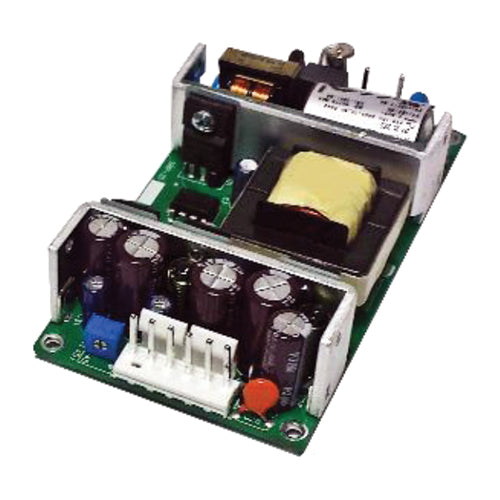

IPD SRP-25-1006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.25x4x0.96
Available with optional chassis and chassis/cover
One to three outputs
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
