LOP-400-15

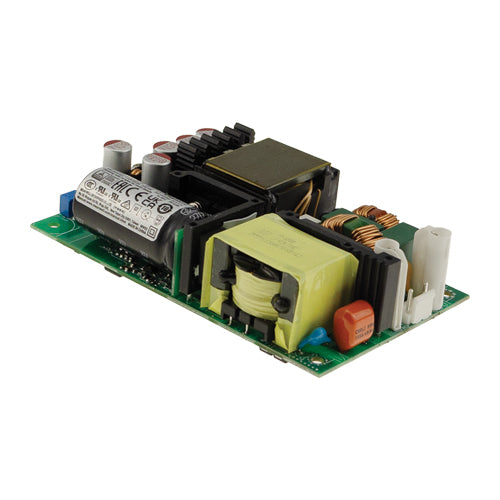

15Vdc 26.7A Power Supply, 3"x5" Open FrameManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
15Vdc
Output Max Current:
26.7 Amps
Max Power:
400.5 Watts
Known Country of Origin:
China
Features
3x5 low profile open frame power supply
AC input range: 80~264Vac
Operating temperature range: -40~+80°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
BF rated
Built-in PFC
Protection Class I & II
Overvoltage Category III
150% Peak Power @3sec
High Efficiency
Built-in 12V/0.5A fan supply
Built-in remote sense
Low standby power <0.5W
Low touch leakage current <70µA
Output power = 250W convection cooled, 400W with 23CFM forced air cooling
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 3 year warranty
