TPP 150-112A-J
12Vdc 12.5A, 12 Volt 12.5A Power Supply Medical & ITE Safety Approvals Open Frame, JST ConnectorsManufacturer: TRACO Power
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
12.5 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features

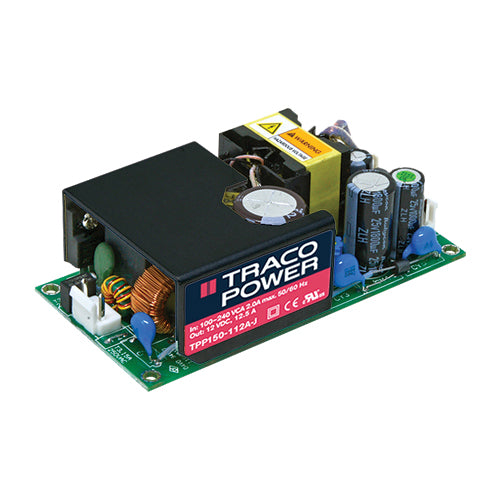

TRACO Power TPP 150-112A-J open frame 2x4 inch medical & industrial power supply
Universal AC input range: 85~264Vac
Operating temperature: -25~+80°C (with derating)
Medical safety approval: ANSI/AAMI ES60601-1 & IEC/EN 60601-1 3rd edition for 2xMOPP
ITE safety approval: UL 60950-1
EMC emission and immunity IEC 60601-1-2 4th Edition
Class I & class II protection
JST type connection
Built-in PFC
Risk management process according to ISO 14971 including risk management file
Acceptance criteria for electronic assemblies according to IPC-A-610 Level 3
Low leakage current <100µA rated for BF applications
Operation up to 5,000 meter altitude
No load power consumption 0.3W max
Protections: short circuit / over voltage / over load
TRACO Power 5 year warranty
