TPP 30-112A-J
12Vdc 2.5A, 12 Volt Power Supply Medical, ITE Open FrameManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
2.5 Amps
Max Power:
30 Watts
Known Country of Origin:
Taiwan
Features

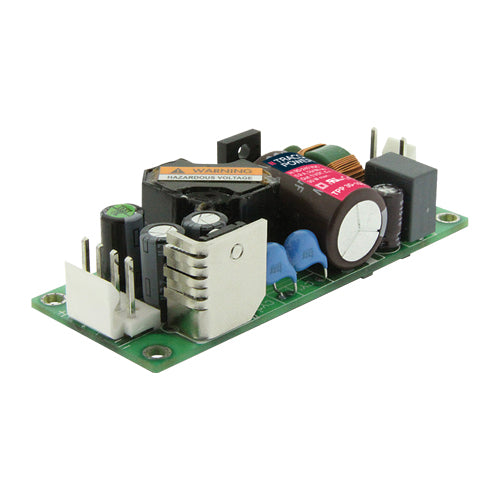

TRACO Power TPP 30-112A-J high power density open frame power supply
Universal AC input range: 85~264Vac
Operating temperature: -40~+85°C (with derating)
Medical safety approval: ANSI/AAMI ES60601-1 & IEC/EN 60601-1 3rd edition for 2xMOPP
ITE safety approval: UL/IEC/EN 62368-1
EMC emission and immunity IEC 60601-1-2 4th Edition
Class I & class II protection
Risk management process according to ISO 14971 including risk management file
Acceptance criteria for electronic assemblies according to IPC-A-610 Level 3
Low leakage current <75µA rated for BF applications
Operating up to 5000m altitude
Compact size: 84.8mm x 34.6mm x 22.4mm
No load power consumption 0.04W
Protections: short circuit / over voltage
TRACO Power 5 year warranty
