TPP 300-124A-M
24V 12.5A, 24 Volt Medical Power Supply Peak Power, Open Frame 24 Volts 12.5 AmpsManufacturer: TRACO Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$132.40
5
$113.35
10
$112.62
25
$111.90
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Output Peak Current:
15 Amps
Max Power:
300 Watts
Known Country of Origin:
Taiwan
Features

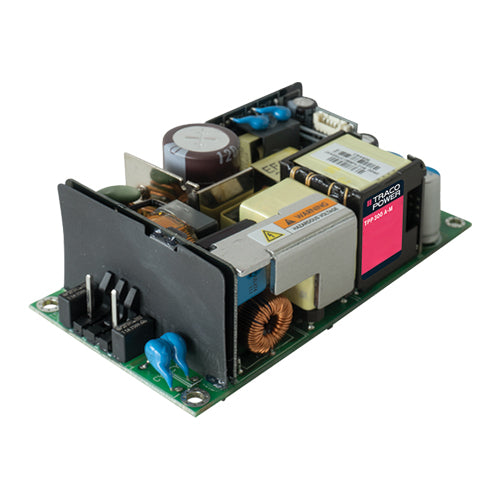

TRACO Power TPP 300-124A-M 2x4 inches open frame medical power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Medical safety certification: ANSI/AAMI ES/IEC/EN 60601-1
EMC emission compliant to IEC 60601-1-2 4th edition
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810F
Peak power 360W for 5 seconds
Adjustable output voltage
DC OK Signal
Remote On/Off
Remote sense function
12V/500mA Aux
5V standby
Withstands 5G vibration
Class I and class II prepared
Built-in PFC, Low leakage current ≤100µA
TPP 300-124A-M
24V 12.5A, 24 Volt Medical Power Supply Peak Power, Open Frame 24 Volts 12.5 AmpsManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Output Peak Current:
15 Amps
Max Power:
300 Watts
Known Country of Origin:
Taiwan
Features
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$132.40
5
$113.35
10
$112.62
25
$111.90
REQUEST a QUOTE for higher qty discounts
