PPWAM180-14
24Vdc Open Frame Power Supply MedicalManufacturer: TT Electronics
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
7.5 Amps
Max Power:
180 Watts
Known Country of Origin:
Taiwan
Features

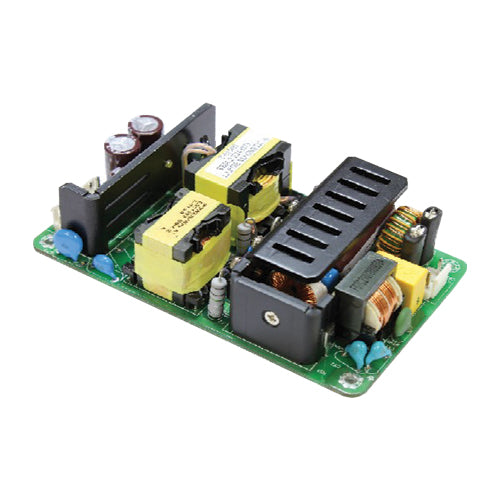

Power Partners PPWAM180-14 compact 3x5 inches open frame AC/DC medical power supply
AC input range: 90~264Vac
Operating temperature range: 0~+60°C
Safety approvals: EN60601-1 3rd Edition, cUL ES60601-1 for USA and Canada
IEC 60601-1-2 4th Edition compliant
BF rated output
2xMOPP
No minimum load
Built-in active PFC function
<100µA earth leakage current @264Vac
Protections: short circuit / over load / over voltage
TT Electronics 1 year warranty
