ECS60US48
48Vdc 1.25A, Open Frame Power Supply, Medical & ITE Certifications, 48 Volts 1.25 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$65.91
5
$63.94
10
$61.96
25
$59.33
100
$55.36
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.25 Amps
Max Power:
60 Watts
Known Country of Origin:
Vietnam
Features

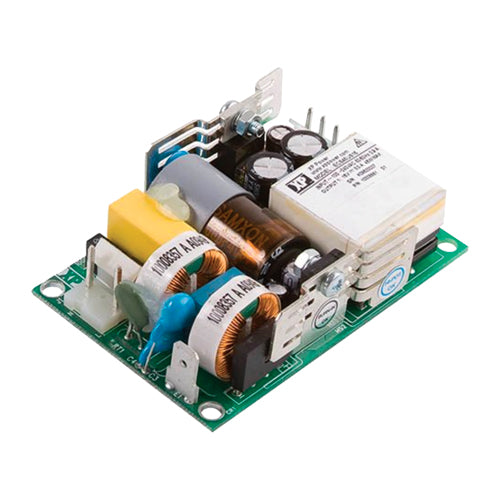

XP Power ECS60US48 2x3 open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class I and class II prepared
Low profile fits 1U applications
Built-in PFC
Adjustable output voltage
Reinforced I/O isolation 4000Vac
Low earth leakage current ≤260µA
No load power consumption ≤0.5 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
