ECS65US24
24Vdc 2.7A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 2.7 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$55.37
5
$53.71
10
$52.04
25
$49.84
100
$46.51
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
2.7 Amps
Max Power:
65 Watts
Known Country of Origin:
Vietnam
Features

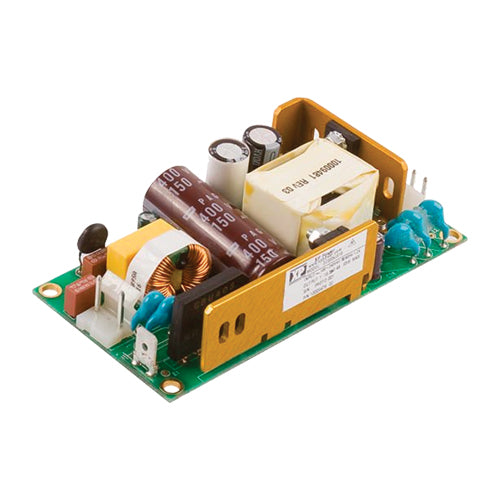

XP Power ECS65US24 2x4 open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class I and class II prepared
Low profile fits 1U applications
Reinforced I/O isolation 4000Vac
Low earth leakage current ≤260µA
No load power consumption ≤0.5 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
