FCS40US24
24Vdc 1.67A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 1.67 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 7 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$23.30
5
$22.60
10
$21.90
25
$20.97
100
$19.57
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.67 Amps
Max Power:
40 Watts
Known Country of Origin:
Vietnam
Features

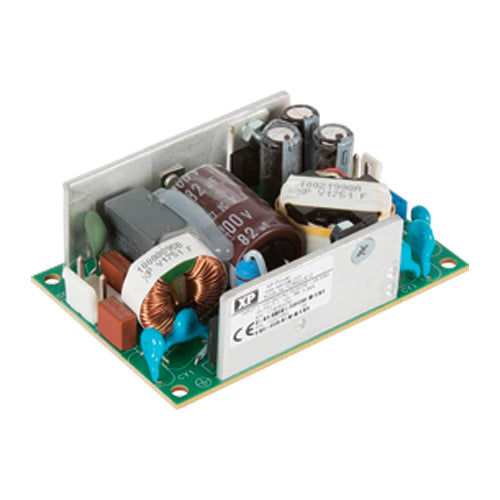

XP Power FCS40US24 2x3 open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Class I and class II prepared
Low earth leakage current ≤270µA
No load power consumption ≤0.3 Watts
Operation up to 5000m altitude
High power density: 6.4W/in³
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
FCS40US24
24Vdc 1.67A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 1.67 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.67 Amps
Max Power:
40 Watts
Known Country of Origin:
Vietnam
Features
In Stock: 7 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$23.30
5
$22.60
10
$21.90
25
$20.97
100
$19.57
REQUEST a QUOTE for higher qty discounts
