FCS40US48
48Vdc 0.83A, Open Frame Power Supply, Medical & ITE Certifications, 48 Volts 0.83 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$27.96
5
$27.12
10
$26.28
25
$25.16
100
$23.48
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
0.83 Amps
Max Power:
40 Watts
Known Country of Origin:
Vietnam
Features

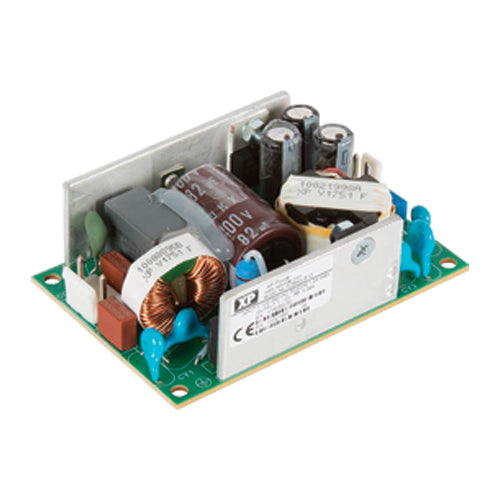

XP Power FCS40US48 2x3 open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Class I and class II prepared
Low earth leakage current ≤270µA
No load power consumption ≤0.3 Watts
Operation up to 5000m altitude
High power density: 6.4W/in³
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
