FCS60US24
24Vdc 2.5A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 2.50 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$27.13
5
$26.32
10
$25.50
25
$24.42
100
$22.79
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
2.5 Amps
Max Power:
60 Watts
Known Country of Origin:
Vietnam
Features

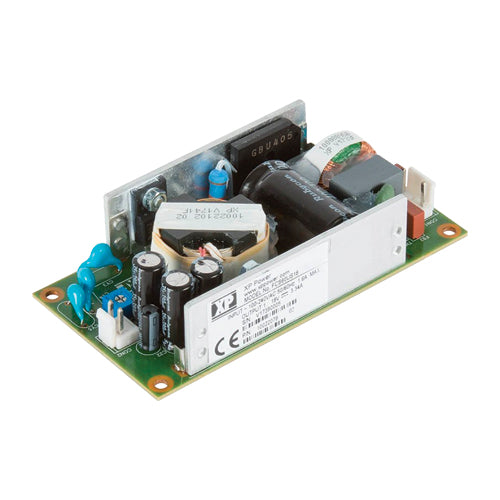

XP Power FCS60US24 2x4 inches open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class I and class II prepared
Low earth leakage current 270µA max
No load power consumption <0.3 Watts
Operation up to 5000m altitude
High power density: 7.2W/cubic inch
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
