REL-110-1006

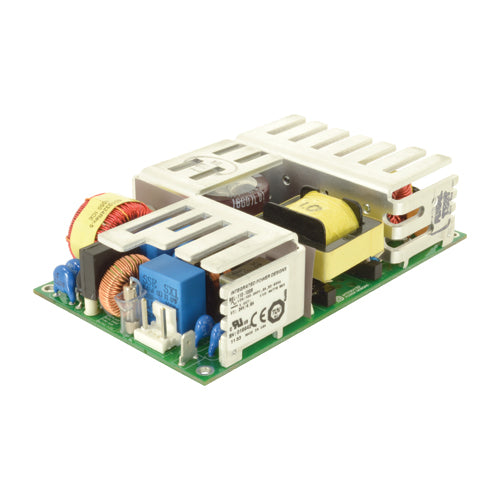

24Vdc Power Supply , Open Frame, 3x5 , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
In Stock: 14 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$124.92
3
$121.19
10
$119.41
25
$116.26
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
4.6 Amps
Max Power:
110 Watts
Known Country of Origin:
USA
Features
IPD REL-110-1006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size, open frame dimensions: 3x5 inchesx1.32
Available with optional chassis and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
REL-110-1006
24Vdc Power Supply , Open Frame, 3x5 , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
4.6 Amps
Max Power:
110 Watts
Known Country of Origin:
USA
Features
In Stock: 14 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$124.92
3
$121.19
10
$119.41
25
$116.26
REQUEST a QUOTE for higher qty discounts
