Power Worth Searching For
REL-110-2003

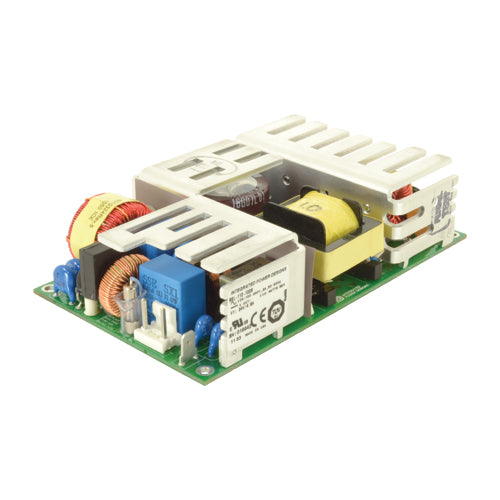

Dual Output Power Supply , Open Frame, 3x5 , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$133.34
3
$129.36
10
$127.46
25
$124.20
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
3 Amps
Max Power:
110 Watts
Known Country of Origin:
USA
Features
IPD REL-110-2003 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size, open frame dimensions: 3x5 inchesx1.32
Available with optional chassis and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
