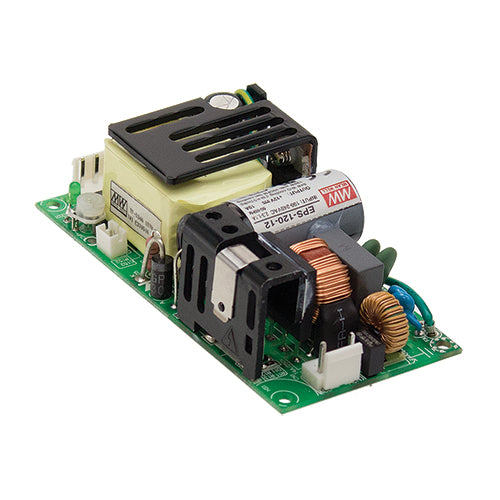

EPS-120-27
27Vdc 4.5A 27Vdc AC/DC Power Supply Single Output, 4"x2" 27V 4.5AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
27Vdc
Output Max Current:
4.5 Amps
Max Power:
122 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
Safety standard: UL62368-1
No load power consumption <0.3W
EMI Class B for both Class I (with FG) and Class II (without FG) configuration
2x4" open frame power supply
LED indicator for power On
Built-in 12V/0.5A fan supply
Cooling by free air convection for 84W and 120W with 10CFM forced air
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
