RPS-400-18

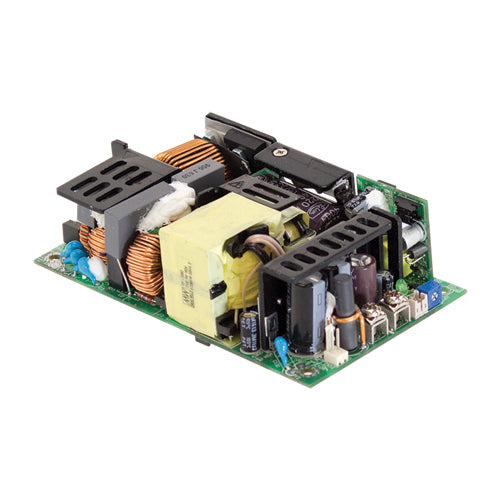

18Vdc 22.3A 18V Medical Power Supply Open Frame 18V 22.3A

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout.

Quantity
Unit Price
1
$104.19
5
$99.24
10
$94.83
20
$92.15

Specifications

Input Voltage:

80~264Vac

Output Voltage:

18Vdc

Output Max Current:

22.3 Amps

Max Power:

401 Watts

Known Country of Origin:

China

Features

AC input range: 80~264Vac

Operating temperature: -30~+70°C

ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 medical safety approvals

2xMOPP

EMI Class B for Class I (with FG) and Class A for Class II (without FG)

Built-in PFC

Low leakage current <250µA

Built-in 12V/0.5A fan supply

No load power consumption <0.5W by PS-ON control

LED power on indicator

Output power = 250W convection cooled or 400W with 25CFM forced air cooling

Power good and power fail signal output

Remote sense function

Protections: short circuit / overload / over voltage / over temperature

MEAN WELL 3 year warranty
