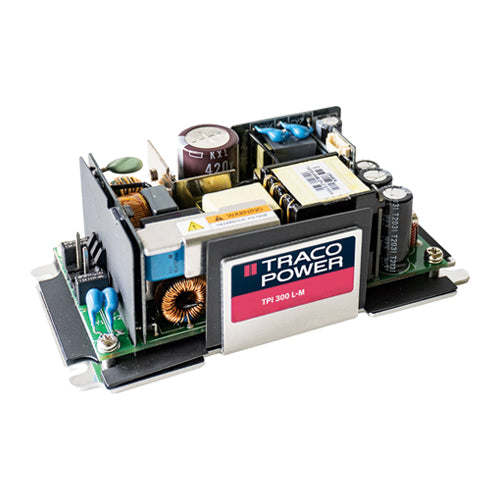

TPI 300-136L-M
36V 8.33A, 36 Volt Power Supply Peak Power, Open Frame 36 Volts 8.33 AmpsManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$158.77
5
$137.08
10
$136.19
25
$135.31
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
8.33 Amps
Output Peak Current:
10 Amps
Max Power:
300 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TPI 300-136L-M open frame industrial AC/DC power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Thermal shock to MIL-STD-810F
Peak power 360W for 5 seconds
Adjustable output voltage
Withstands 5G vibration
Aux 12Vdc up to 500mA
Standby Voltage: 5Vdc up to 1A
Remote On/Off
Remote sense function
High efficiency
Class I and class II prepared
Meets conducted EMI Class B
DC OK Signal, Built-in PFC
Low leakage current ≤300µA, Operation up to 5000m altitude
Protections: short circuit / overvoltage / over temperature
TRACO Power 3 year warranty
