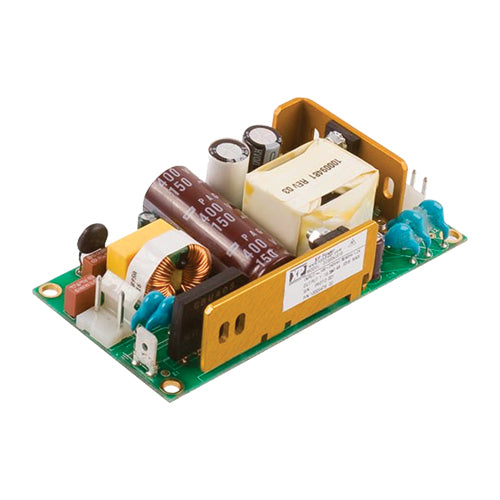

ECS65US12
12Vdc 5.4A, Open Frame Power Supply, Medical & ITE Certifications, 12 Volts 5.4 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 37 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$46.14
5
$44.76
10
$43.37
25
$41.53
100
$38.76
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
5.4 Amps
Max Power:
65 Watts
Known Country of Origin:
Vietnam
Features
XP Power ECS65US12 2x4 open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class I and class II prepared
Low profile fits 1U applications
Reinforced I/O isolation 4000Vac
Low earth leakage current ≤260µA
No load power consumption ≤0.5 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
