FCB100US19
19Vdc 5.3A, 19Vdc Power Supply, 2x4 Open Frame, 19 Volts 5.3 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$52.67
5
$51.08
10
$49.51
25
$47.40
100
$44.24
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
19Vdc
Output Max Current:
5.3 Amps
Max Power:
100 Watts
Known Country of Origin:
Vietnam
Features

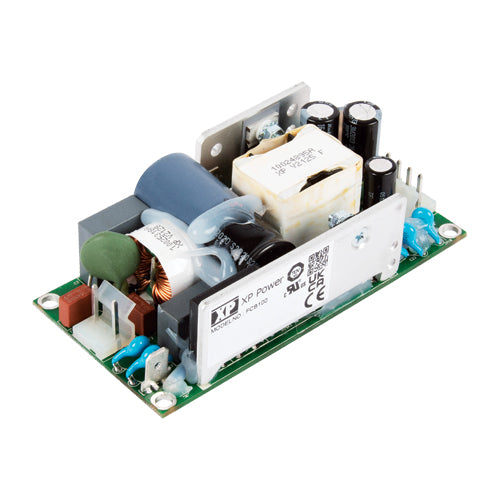

XP Power FCB100US19 2x4 inches open frame power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
EN55032, EN55011 Class B conducted and radiated emissions
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Protection Class I & II
No load power consumption ≤0.3 Watts
Low earth leakage current <270µA
Protections: short circuit / overvoltage / overload / over temperature
XP Power 3 year warranty
