Power Worth Searching For
GCS250PS28
28Vdc 8.9A, 28V Open Frame Power Supply, Medical and ITE Cerifications, 28 Volts 8.9 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$124.98
5
$121.23
10
$117.48
25
$112.48
100
$104.98
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
28Vdc
Output Max Current:
8.9 Amps
Max Power:
257 Watts
Known Country of Origin:
Vietnam
Features

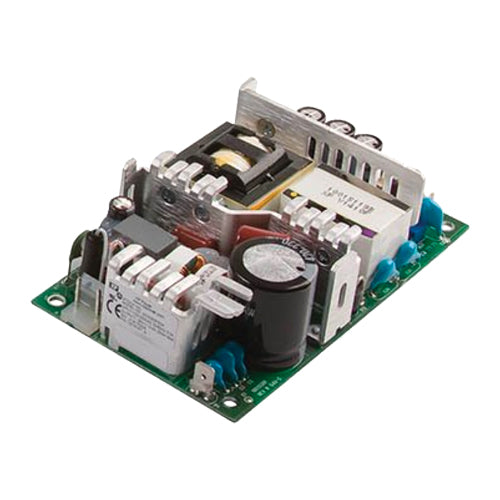

XP Power GCS250PS28 3x5 inches open frame medical and ITE power supply
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC 60950-1, IEC/EN 62368-1, UL 62368-1
Low leakage current ≤250µA
Adjustable output voltage
Class I and class II prepared
Remote sense function
Built-in PFC
No minimum load required
No load power consumption <5 watts
High efficiency
Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
GCS250PS28
28Vdc 8.9A, 28V Open Frame Power Supply, Medical and ITE Cerifications, 28 Volts 8.9 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
28Vdc
Output Max Current:
8.9 Amps
Max Power:
257 Watts
Known Country of Origin:
Vietnam
Features
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$124.98
5
$121.23
10
$117.48
25
$112.48
100
$104.98
REQUEST a QUOTE for higher qty discounts
