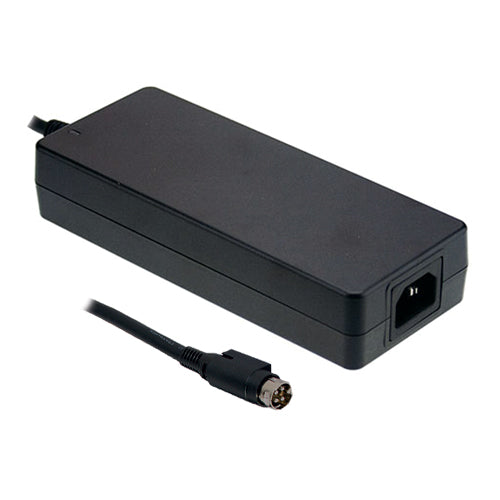

GC160A12-R7B
13.6Vdc Battery Charger, 13.6V10A; 18AWGx4C/120cm,DIN 4PINManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
13.6Vdc
Max Charge Current:
10 Amps
Max Power:
136 Watts
Known Country of Origin:
China
Features
AC input range: 85~264Vac
Operating temperature: -30~+70°C
No load power consumption: <1W
Built-in active PFC function >0.90
2 stage charging characteristic
3 pole AC inlet: IEC320-C14
2 color LED indicator for charging status
Protections: short circuit / over load / over voltage / over temperature
GC160A12-R7B
13.6Vdc Battery Charger, 13.6V10A; 18AWGx4C/120cm,DIN 4PINManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
13.6Vdc
Max Charge Current:
10 Amps
Max Power:
136 Watts
Known Country of Origin:
China
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
