NTN-5K-148CAN

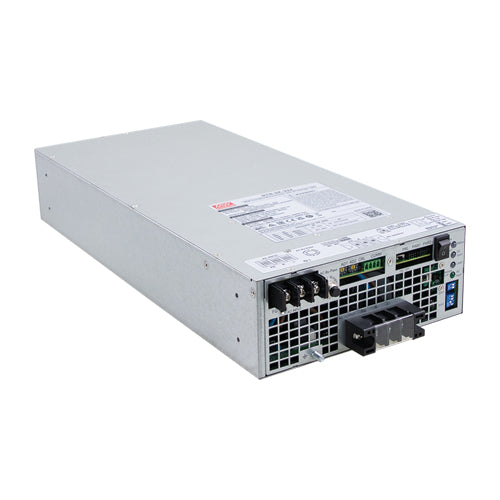

48Vdc 120A, 5kW DC/AC Inverter, AC Charger, UPS Function, 110Vac, CANBusManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$2,316.10
5
$2,206.39
10
$2,108.87
20
$2,047.92
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
40~66Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
4000 Watts
Known Country of Origin:
Taiwan
Features
5kW DC/AC inverter with AC charger, UPS function and CANBus communication
True sine wave output (THD<3%)
Operating temperature range: -30~+70°C
Industrial safety certification: IEC/EN 62368-1
High surge output power up to 8000W
Built-in UPS function (AC by-pass)
Built-in temperature controlled fans
Built-in remote On/Off control
Digital design with MCU control
Parallel operation up to 30kW (5+1 units)
Supports CANBus communication
Conformal coated
5V Aux output
On/Off switch
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low alarm / DC low shutdown / overvoltage
Output protections: short circuit / overload / over temperature
Battery over discharge protection (low voltage disconnect)
MEAN WELL 5 year warranty
