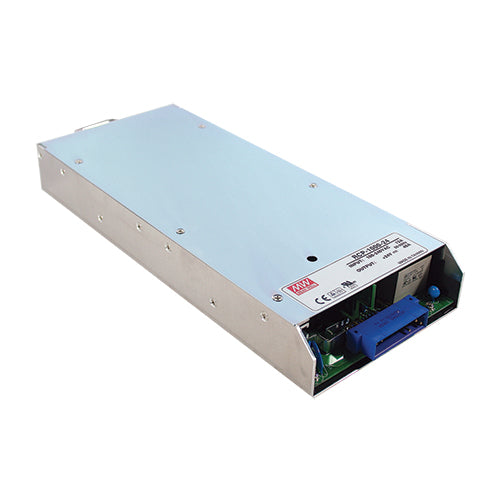

RCP-1000-24-C
24Vdc 40A, Hot Swappable Power Supply, I2C Interface, Rack PowerManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$372.53
5
$362.33
10
$348.02
20
$339.10
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
40 Amps
Max Power:
960 Watts
Known Country of Origin:
Taiwan
Features
Up to three RCP-1000-24-C power supplies can be inserted into Mean Well RCP-1U Rack Case
AC input range: 90~264Vac
Operating temperature: -20~+60°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Built-in active PFC
Optional I2C serial bus
Built-in 5V/0.3A auxiliary power
Protections: short circuit / overload / over voltage / over temperature
Forced air cooling by built-in DC fan with fan speed control
Built-in remote sense function
Remote control for single unit
PMBus serial communication
AC OK and DC OK signals
Internal OR-ing diode
Up to 3,000 Watts (3 unit) populated in one single 19" rack case
Connect up to 3 racks max in parallel populated with max 8 RCP-1000 units (up to 8,000 Watts)
Current sharing up to 12,800W or N+1 redundancy for one 19 inch rack shelf- DHP-1UT
