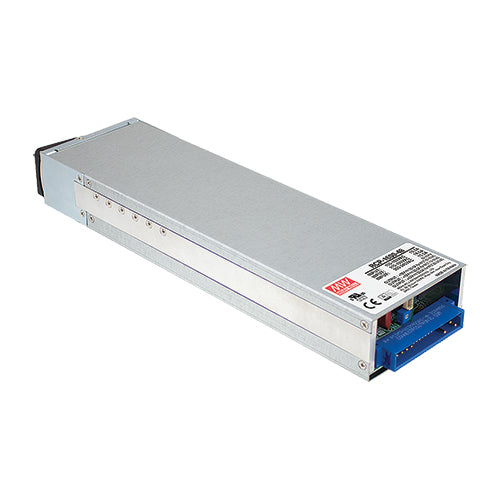

RCP-1600-24
24Vdc 67A, Hot Swappable Power Supply, Rack PowerManufacturer: MEAN WELL
View Data Sheet
In Stock: 24 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$550.70
5
$535.61
10
$514.48
20
$501.29
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
67 Amps
Max Power:
1608 Watts
Known Country of Origin:
Taiwan
Features
Up to 8,000 Watts (5 unit) populated in one 19 inch rack
Connect up to 3 racks max in parallel, up to 24,000 Watts
AC input range: 90~264Vac
Built-in active PFC
Operating temperature: -30~+70°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Built-in 5V/0.3A and 12V/0.8A auxiliary power
Withstand 300Vac surge input for 5 seconds
Protections: short circuit / over load / over voltage / over temperature
Output voltage and constant current level programmable
AC OK, DC OK, fan failure and over temperature alarm signals
Internal OR-ing FET to support hot swap
I2C interface, PMBus protocol (optional CANbus protocol)
Forced air cooling by built-in DC fan with fan speed control
Remote sense
Remote control
Ideal for distributed power architecture systems, wireless / telecommunication solutions and redundant power systems
MEAN WELL 5 year warranty
