Power Worth Searching For

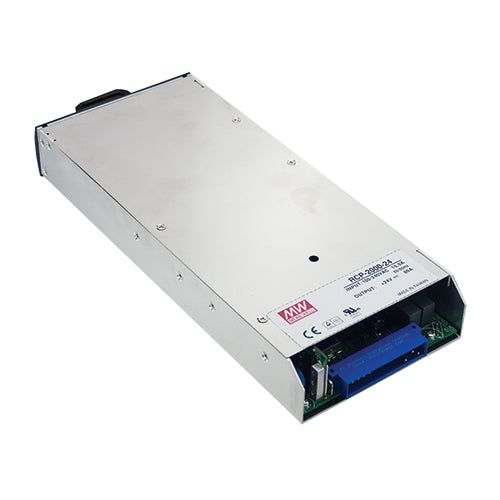

RCP-2000-24
24v Hot Swappable Power Supply Rack Mountable 24V 80AManufacturer: MEAN WELL
View Data Sheet
In Stock: 35 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$561.97
5
$546.58
10
$525.00
20
$511.54
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
80 Amps
Max Power:
1920 Watts
Features
RKP-1U holds up to 3 hot swappable RCP-2000 power modules
Up to 6,000 Watts (3 unit) populated in single one 19 inch rack
Connect up to 3 racks max in parallel, up to 18,000 Watts
AC input range: 90~264Vac
Built-in active PFC
Operating temperature: -35~+70°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Built-in 5V/0.3A and 12V/0.8A auxiliary power
Withstand 300Vac surge input for 5 seconds
Protections: overload / over voltage / over temperature
Forced air cooling by built-in DC fan with fan speed control
Built-in remote sense function
PMBus serial communication
AC OK, DC OK, fan failure and over temperature alarm signals
Internal OR-ing FET
Ideal for front-end power systems, servers, telecom and instrumentation applications
MEAN WELL 5 year warranty
RCP-2000-24
24v Hot Swappable Power Supply Rack Mountable 24V 80AManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
80 Amps
Max Power:
1920 Watts
Features
RKP-1U holds up to 3 hot swappable RCP-2000 power modules
Up to 6,000 Watts (3 unit) populated in single one 19 inch rack
Connect up to 3 racks max in parallel, up to 18,000 Watts
AC input range: 90~264Vac
Built-in active PFC
Operating temperature: -35~+70°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Built-in 5V/0.3A and 12V/0.8A auxiliary power
Withstand 300Vac surge input for 5 seconds
Protections: overload / over voltage / over temperature
Forced air cooling by built-in DC fan with fan speed control
Built-in remote sense function
PMBus serial communication
AC OK, DC OK, fan failure and over temperature alarm signals
Internal OR-ing FET
Ideal for front-end power systems, servers, telecom and instrumentation applications
MEAN WELL 5 year warranty
In Stock: 35 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$561.97
5
$546.58
10
$525.00
20
$511.54
REQUEST a QUOTE for higher qty discounts
