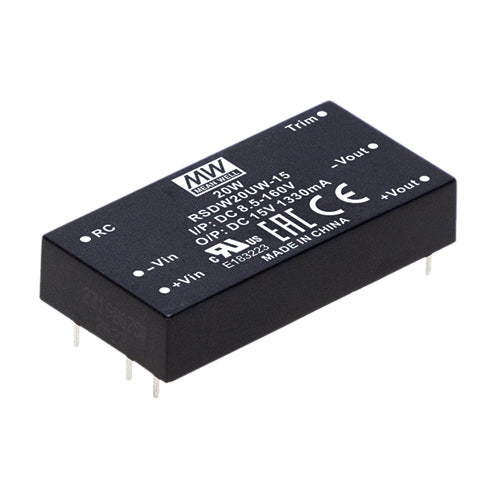

RSDW20UW-15
20W I/P: 8.5-160VDC; O/P: 15V@1330mA, DC/DC Converter 2x1 18:1 Input, 20 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$68.48
10
$67.58
25
$66.70
50
$65.85
100
$64.20
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
8.5~160Vdc
Output Voltage:
15Vdc
Output Max Current:
1.33 Amps
Max Power:
20 Watts
Known Country of Origin:
China
Features
Ultra-wide 18:1 input range
Operating temperature range: -40~+95°C
Industrial safety certification: UL 62368-1
Compliance to EN 50155 railway standard
Compliance to IEC 61373 for shock & vibration
I/O isolation: 3000Vac
Adjustable output voltage
No minimum load required
Fully regulated output
Remote On/Off
Operation up to 5000m altitude
Shielded metal case with isolated baseplate
Protections: short circuit / overload / overcurrent / input under voltage
MEAN WELL 3 year warranty
