Power Worth Searching For

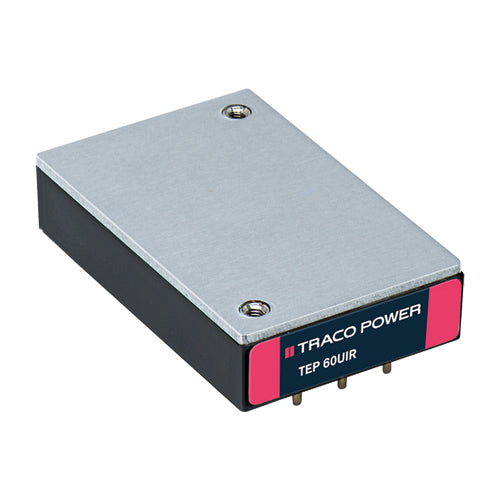

TEP 60-7213UIR
15Vdc 4A, DC/DC Converter Quarter Brick 12:1 InputManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$171.64
10
$160.51
25
$158.46
50
$136.05
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
14~160Vdc
Output Voltage:
15Vdc
Output Max Current:
4 Amps
Max Power:
60 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEP 60-7213UIR 1/4 brick railway DC/DC converter
Ultra-Wide 12:1 input range
Operating temperature range: -40~+75°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810F
Compliance to IEC 61373 for shock and vibration
Compliance to EN 50155 railway standard
I/O isolation: 3000Vac
Adjustable output voltage
Remote On/Off
Protections: short circuit / overvoltage / under voltage lockout
TRACO Power 3 year warranty
