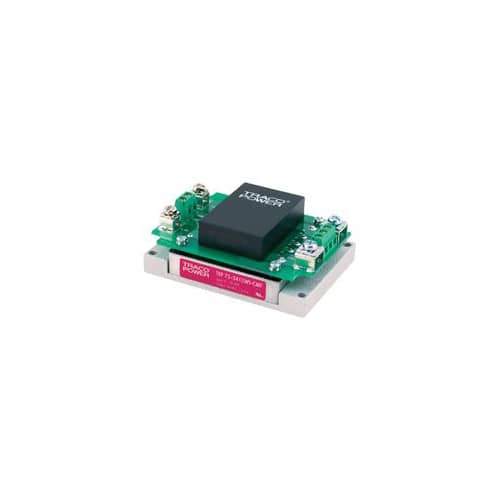

TEP 75-7210WI-CMF
DC/DC Converter Terminal, EMI Filter, Railway Ultra Wide 4:1 Input Range
Manufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
43~160Vdc
Output Voltage:
3.3Vdc
Output Max Current:
20 Amps
Max Power:
66 Watts
Known Country of Origin:
Not specified
Features
TRACO Power TEP 075-7210WI-CMF high performance compact & rugged package DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C
EN 50155 approval for demanding applications such as railway and transportation
Chassis mount with screw terminal block and input filter to meet EN 55022 class A
Input protection filter
Remote On/Off
Remote sense
Reverse input voltage protection
Under voltage lock-out circuit
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
