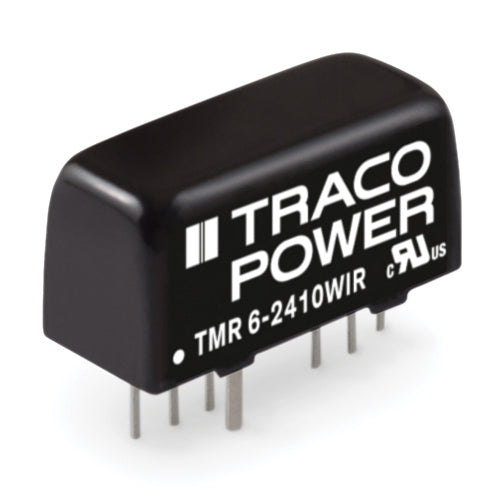

Power Worth Searching For
TMR 6-4813WIR
15Vdc 0.4A, 15 Volt DC/DC Converter Ultra Wide 4:1 Input Range Compact SIP-8 Package, RailwayManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
Factory Stock: 90 i If factory stock is available, we can typically ship that additional stock from the factory to you within two weeks. Contact us to confirm timing for your quantity.
Quantity
Unit Price
1
$34.00
10
$28.70
25
$28.31
100
$24.92
Click for Quote for higher qty discounts
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
15Vdc
Output Max Current:
0.4 Amps
Max Power:
6 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TMR 6-4813WIR compact SIP-8 package railway DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+80°C
Safety approvals: IEC/EN/UL 60950-1
EN 50155 railway approval
Metal case
Remote On/Off
I/O isolation 3000Vdc
Fully regulated outputs
Protections: short circuit / overload
TRACO Power 3 year warranty
TMR 6-4813WIR
15Vdc 0.4A, 15 Volt DC/DC Converter Ultra Wide 4:1 Input Range Compact SIP-8 Package, RailwayManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
15Vdc
Output Max Current:
0.4 Amps
Max Power:
6 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TMR 6-4813WIR compact SIP-8 package railway DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+80°C
Safety approvals: IEC/EN/UL 60950-1
EN 50155 railway approval
Metal case
Remote On/Off
I/O isolation 3000Vdc
Fully regulated outputs
Protections: short circuit / overload
TRACO Power 3 year warranty
Availability: Contact Us
Factory Stock:
90
i
If factory stock is available, we can typically ship that additional stock from the factory to you within two weeks. Contact us to confirm timing for your quantity.
Quantity
Unit Price
1
$34.00
10
$28.70
25
$28.31
100
$24.92
Click for Quote for higher qty discounts
