TEL 2-2411

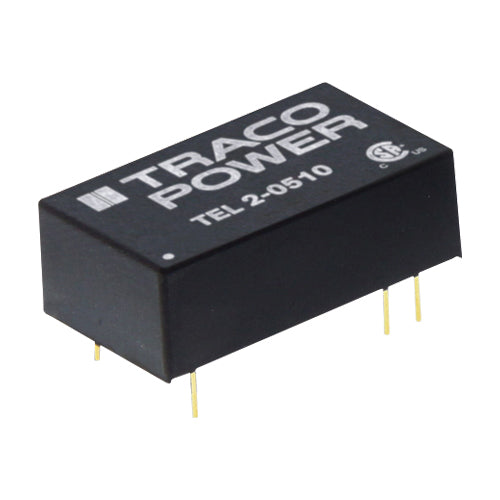

5Vdc 0.4A, DC-DC Converter DIP-16 PackageManufacturer: TRACO Power
View Data Sheet
In Stock: 100 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
18~36Vdc
Output Voltage:
5Vdc
Output Max Current:
0.4 Amps
Max Power:
2 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEL 2-2411 ultra compact DIP-16 package DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+75°C
Input filter meets EN55022, class A without external components
I/O isolation 1500Vdc
Low profile plastic package
Low ripple and noise
Industry standard pinout
Regulated output
Indefinite short circuit protection
TRACO Power 3 year warranty
