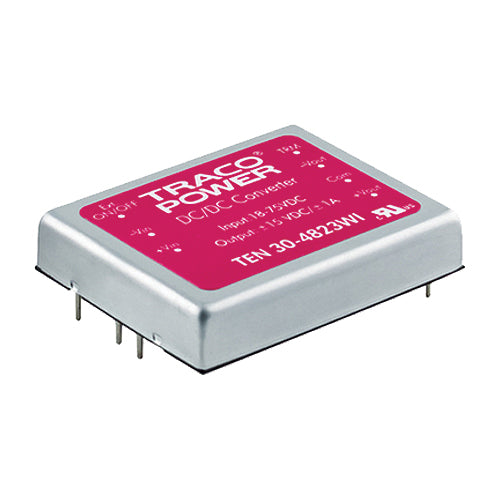

TEN 30-2423WI
Dual O/P, DC-DC Converter 2x1 Package Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$111.27
10
$92.70
25
$90.29
50
$80.06
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
10~40Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
1 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
-1 Amps
Max Power:
30 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEN 30-2423WI 2x1 inch encapsulated 30 Watt DC/DC converter
Ultra wide 4:1 input range
Operating temperature: -40~+85°C
2x1 shielded metal package with isolated baseplate
High efficiency
Remote On/Off
Optional heat sink available
Under voltage lockout
Protections: short circuit / over load / over voltage / thermal shutdown
TRACO Power 3 year warranty
TEN 30-2423WI
Dual O/P, DC-DC Converter 2x1 Package Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
10~40Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
1 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
-1 Amps
Max Power:
30 Watts
Known Country of Origin:
Taiwan
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$111.27
10
$92.70
25
$90.29
50
$80.06
REQUEST a QUOTE for higher qty discounts
