TEN 40-2410WI
3.3Vdc 10A, DC-DC Converter 2x2Manufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$123.32
10
$100.94
25
$98.32
50
$85.81
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
3.3Vdc
Output Max Current:
10 Amps
Max Power:
33 Watts
Known Country of Origin:
Taiwan
Features

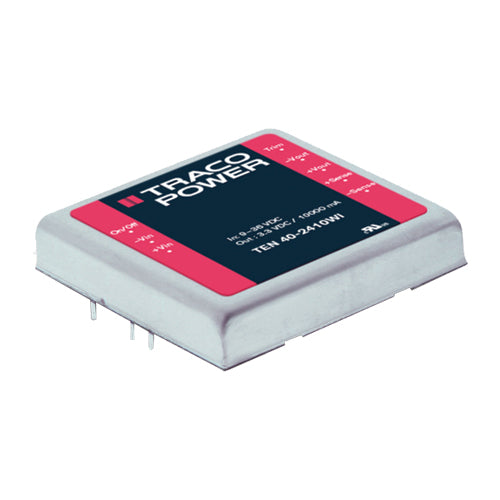

TRACO Power TEN 40-2410WI 2x2 inch low profile DC/DC converter
Ultra wide 4:1 input range
Operating temperature: -40~+85°C
Safety approvals: UL/IEC/EN 60950-1
No minimum load required for single output models
Shielded metal package with insulated baseplate
Under voltage lockout
Remote On/Off
Protections: short circuit / over load / over voltage / thermal shutdown /over temperature
Optional heat sink available
TRACO Power 3 year warranty
