TEN 5-2410WI

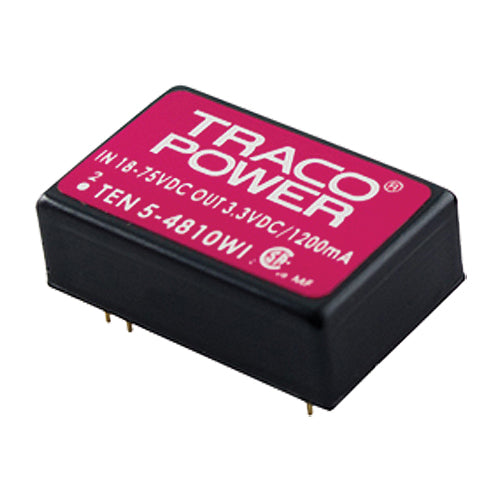

3.3Vdc 1A, DC-DC Converter DIP-24 Package Ultra-Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$43.64
10
$36.96
25
$36.47
100
$30.19
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
3.3Vdc
Output Max Current:
1 Amps
Max Power:
5 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEN 5-2410WI DIP-24 metal package DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+85°C
Full SMD design
I/O isolation 1500Vdc
Excellent load and line regulation
Built-in filter to meet EN 55022, Class A and FCC, level A
High efficiency
Indefinite short circuit protection
TRACO Power 3 year warranty
