Power Worth Searching For
TMM 24112C

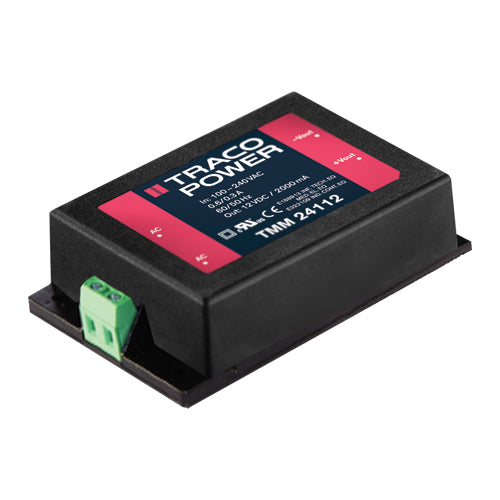

12Vdc 2A, 12 Volt Power Supply Medical & ITE Safety EncapsulatedManufacturer: TRACO Power
View Data Sheet
In Stock: 8 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
2 Amps
Max Power:
24 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TMM 24112C fully encapsulated medical AC/DC power supply with screw terminals
Universal AC input range: 85~264Vac
Operating temperature: -40~+80°C
Safety approval: IEC/EN/UL 60950-1 & UL 508
Medical safety approvals: AAMI/ANSI ES 60601-1:2005(R) & IEC/EN 60601-1 3rd edition
2xMOPP
Safety class II
No load power consumption <0.3W
Optional DIN rail mount adaptor
Protections: short circuit / over load / over temperature
TRACO Power 3 year warranty
