Power Worth Searching For
TMW 24-112P
12Vdc 2A, 12 Volt Medical Power Supply Encapsulated, PCB Mount 12 Volts 2 AmpsManufacturer: TRACO Power
View Data Sheet
In Stock: 20 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
2 Amps
Max Power:
24 Watts
Known Country of Origin:
China
Features

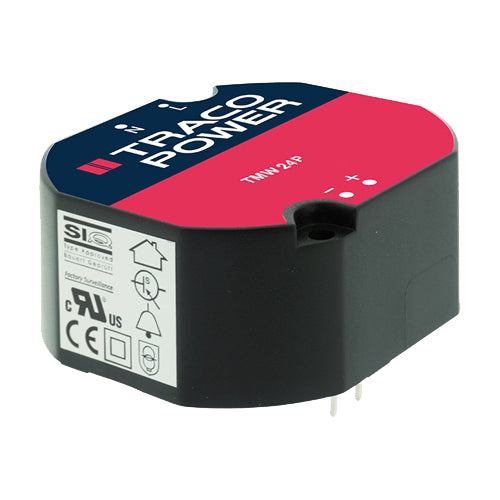

TRACO Power TMW 24-112P encapsulated medical AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -20~+80°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1
Protection Class I & II
IP68, fully encapsulated plastic case
No load power consumption: ≤0.2W
Low leakage current ≤100µA
Operation up to 5000m altitude
Mountable in wall outlet boxes
Pin mount
Protections: overvoltage / short circuit / over temperature
TRACO Power 5 year warranty
