TEN 60-4815WIR
24Vdc 2.5A, DC/DC Converter 2x1 Package 4:1 InputManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$145.78
10
$130.93
25
$129.25
50
$114.09
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
24Vdc
Output Max Current:
2.5 Amps
Max Power:
60 Watts
Known Country of Origin:
Taiwan
Features

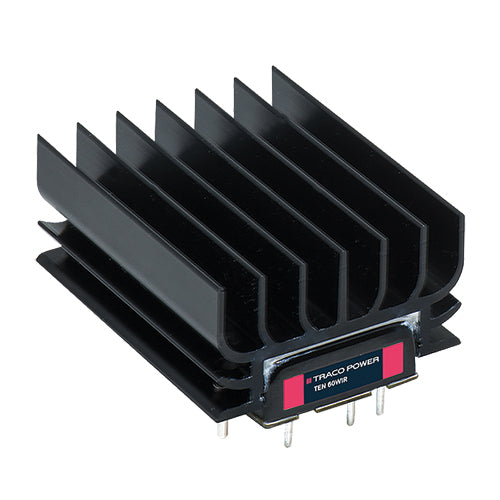

TRACO Power TEN 60-4815WIR 2x1 inches metal package railway DC/DC converter
Ultra-Wide 4:1 input range
Operating temperature range: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810F
Compliance to EN 61373 for shock and vibration
Compliance to EN 50155 railway standard
I/O isolation: 3000Vdc
Adjustable output voltage
Remote On/Off
Protections: short circuit / overvoltage / under voltage lockout
TRACO Power 3 year warranty
