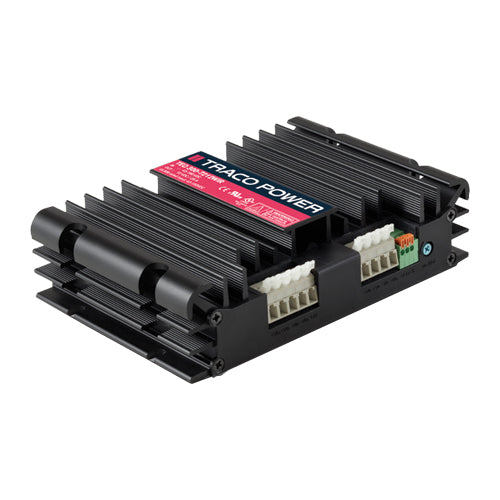

TEQ 300-4812WIR
12Vdc 25A, DC-DC Converter High Power Block, Metal Case Wide 4:1 Input Voltage RangeManufacturer: TRACO Power
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$698.90
5
$633.96
10
$584.66
25
$541.67
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
12Vdc
Output Max Current:
25 Amps
Max Power:
300 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEQ 300-4812WIR high performance power block DC/DC converter with excellent thermal convection
Ultra wide 4:1 input voltage range
Operating temperature: -40~+80°C
EN 50155 approval for demanding applications such as railway and transportation
Increased shock and vibration resistance
Input filter to meet EN 55022 class A
Input protection filter
Constant current output characteristic for battery load applications
Infinite capacitive load
Power sharing (up to 3 pcs in parallel)
High efficiency
I/O isolation 2250Vdc
Soft start
Remote sense
Remote On/Off
Adjustable output voltage via potentiometer
Under voltage lockout
Protection: over voltage / over load / short circuit / over temperature
TRACO Power 3 year warranty
