TEC 3-1223
Dual O/P, Dual Output DC/DC Converter Wide 2:1 Input Voltage Range SIP-8 PackageManufacturer: TRACO Power
View Data Sheet
In Stock: 13 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$13.40
10
$12.55
25
$12.39
100
$10.17
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~18Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.1 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
-0.1 Amps
Max Power:
3 Watts
Known Country of Origin:
Taiwan
Features

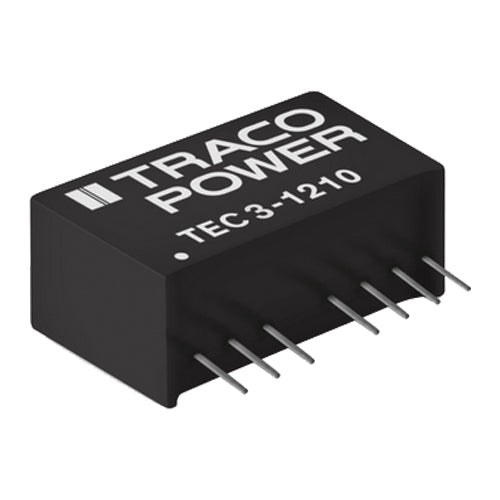

TRACO Power TEC 3-1223 compact plastic 0.6 x 0.36 inch SIP-8 package DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+90°C
Safety approvals: IEC/EN/UL 60950-1
I/O isolation 1600Vdc
Remote On/Off
Protections: short circuit
TRACO Power 3 year warranty
